產品特點：
低背隙 超靜音 高效率 長壽命

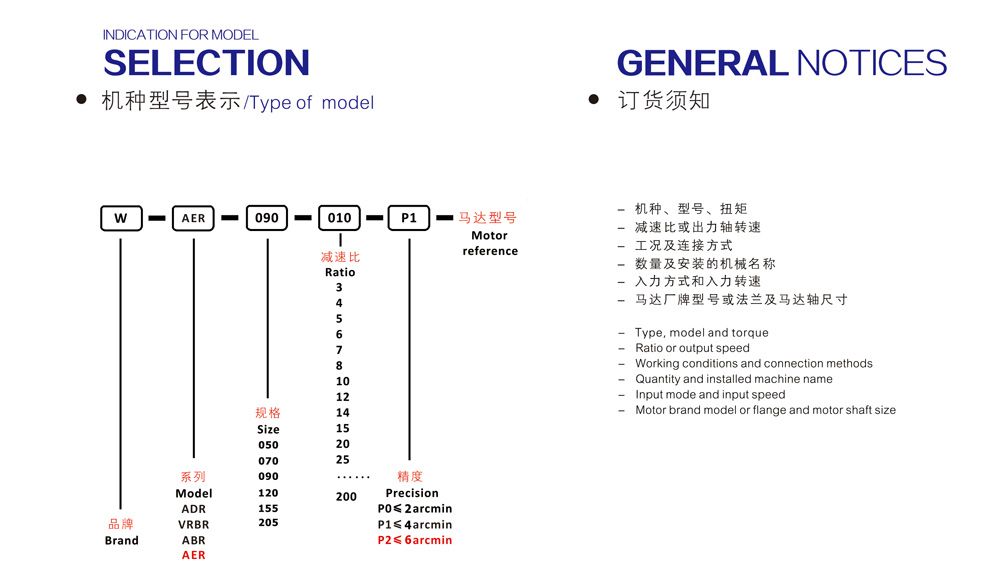

型號命名：
W-AER-090-010-P1-馬達型號
W：萬鑫標記（wanshsin）
AER:系列（AB/AD/AE/PL/R/T/VRB/ABR/ADR/AER/PLR/PFR/VRBR）
090:框號(042/060/090/115/142/180/220)
010減速比：（003,004,005,006,007,008,010...070,080,090,100...200）
P1：精度（P0≤2acmin,P1≤4armin,P2≤6armin）
WAER系列性能表 / WAER Series Performance Table | |||||||||
規格 Specification | 單位 Unit | 節數 Stage | 減速比Ratio | WAER050 | WAER070 | WAER090 | WAER120 | WAER155 | WAER205 |
額定輸出力矩 Rated output torque T2N | Nm | 1 | 3 | 9 | 36 | 90 | 195 | 342 | 588 |
4 | 12 | 48 | 120 | 260 | 520 | 1040 | |||
5 | 15 | 60 | 150 | 325 | 650 | 1200 | |||
6 | 18 | 55 | 150 | 310 | 600 | 1100 | |||
7 | 19 | 50 | 140 | 300 | 550 | 1100 | |||
8 | 17 | 45 | 120 | 260 | 500 | 1000 | |||
10 | 14 | 40 | 100 | 230 | 450 | 900 | |||
12 | 18 | 55 | 150 | 310 | 600 | 1100 | |||
14 | 19 | 50 | 140 | 300 | 550 | 1100 | |||
20 | 14 | 40 | 100 | 230 | 450 | 900 | |||
2 | 15 | 15 | 60 | 150 | 325 | 650 | 1200 | ||
25 | 15 | 60 | 150 | 325 | 650 | 1200 | |||
30 | 20 | 55 | 150 | 310 | 600 | 1100 | |||
35 | 19 | 50 | 140 | 300 | 550 | 1100 | |||
40 | 17 | 45 | 120 | 260 | 500 | 1000 | |||
45 | 14 | 40 | 100 | 230 | 450 | 900 | |||
50 | 14 | 60 | 100 | 230 | 650 | 1200 | |||
60 | 20 | 55 | 150 | 310 | 600 | 1100 | |||
70 | 19 | 50 | 140 | 300 | 550 | 1100 | |||
80 | 17 | 45 | 120 | 260 | 500 | 1000 | |||
90 | 14 | 40 | 100 | 230 | 450 | 900 | |||
100 | 14 | 40 | 100 | 230 | 450 | 900 | |||
120 | 18 | 55 | 150 | 310 | 600 | 1100 | |||
140 | 19 | 50 | 140 | 300 | 550 | 1100 | |||
160 | 17 | 45 | 120 | 260 | 500 | 1000 | |||
200 | 14 | 40 | 100 | 230 | 450 | 900 | |||
急停扭矩 /Emergency stop torque T2NOT | Nm | 1,2 | 3-200 | 三倍額定輸出力矩/Triple rated output torque | |||||
額定輸入轉速/Rated input speed η1N | rpm | 1,2 | 3-200 | 5000 | 5000 | 4000 | 4000 | 3000 | 3000 |
最大輸入轉速/Maximum input speed η1B | rpm | 1,2 | 3-200 | 10000 | 10000 | 8000 | 8000 | 6000 | 6000 |
精密背隙/Precision backlash P1* | arcmin | 3~20 | ≤4 | ≤ 4 | ≤4 | ≤4 | ≤ 4 | ≤4 | |
2 | 15-200 | ≤7 | ≤7 | ≤7 | ≤7 | ≤7 | ≤7 | ||
標準背隙/Standard backlashP2* | arcmin | 3~20 | ≤6 | ≤6 | ≤6 | ≤6 | ≤6 | ≤6 | |
2 | 15-200 | ≤9 | ≤9 | ≤9 | ≤9 | ≤9 | ≤9 | ||
經濟背隙/Economic backlash P3 | arcmin | 3~20 | ≤8 | ≤8 | ≤8 | ≤8 | ≤8 | ≤8 | |
2 | 15-200 | ≤12 | ≤12 | ≤12 | ≤12 | ^12 | |||
扭轉剛性/Torsional rigidity | Nm/arcmin | 1,2 | 3 ?200 | 3 | 7 | 14 | 25 | 50 | 145 |
容許徑向力/Allowable radial force F2aB | N | 1,2 | 3-200 | 780 | 1530 | 3250 | 6700 | 9400 | 14500 |
容許軸向力/Allowable axial force F2aB | N | 1,2 | 3-200 | 390 | 765 | 1625 | 3350 | 4700 | 7250 |
使用壽命/Lifespan | hr | 1,2 | 3-200 | 20000 * | |||||
效率 /Efficiency | % | 3~20 | ≥95% | ||||||
2 | 25-200 | ≥92% | |||||||
重量 /Weight | kg | 3~20 | 0.9 | 2.1 | 6.4 | 13 | 24.5 | 51 | |
2 | 25-200 | 1.2 | 1.5 | 7.8 | 14.2 | 27.5 | 54 | ||
使用溫度 /Working temperature | °C | 1,2 | 3-200 | (-10° C +90° C ) | |||||
潤滑 /Lubricating | 合成潤滑油脂 / Synthetic lubricating grease | ||||||||
防護等級/IP Grade | 1,2 | 3-200 | IP65 | ||||||
安裝方向 /Installation direction | 1,2 | 3-200 | 任意方向 /In any direction | ||||||
噪音值(η1=3000,無負載） Noise level (η1 =3000, offload) | dB(A) | 1,2 | 3-200 | ≤61 | ≤63 | ≤65 | ≤68 | ≤70 | ≤72 |
(帶"*"的精度需與工程師確認 / Need confirm with our engineer for those precision data with*) | |||||||||
